An LCD module is the display plus its driving electronics in one assembly — glass, driver IC, backlight and connection — so your board talks to a finished component instead of a bare panel. HZY builds four module families in Shenzhen, and this page is the index to all of them. If you already know the construction you need, go straight to the family; if not, the notes below each card explain where that family wins.
Colour: TFT modules
TFT is where colour, touch and high resolution live. Our range concentrates on 0.85–10.1 inch platform-listed models with SPI, QSPI, MIPI, RGB and MCU interfaces. Start at TFT LCD modules or browse by size.
Monochrome graphic: COG and COB

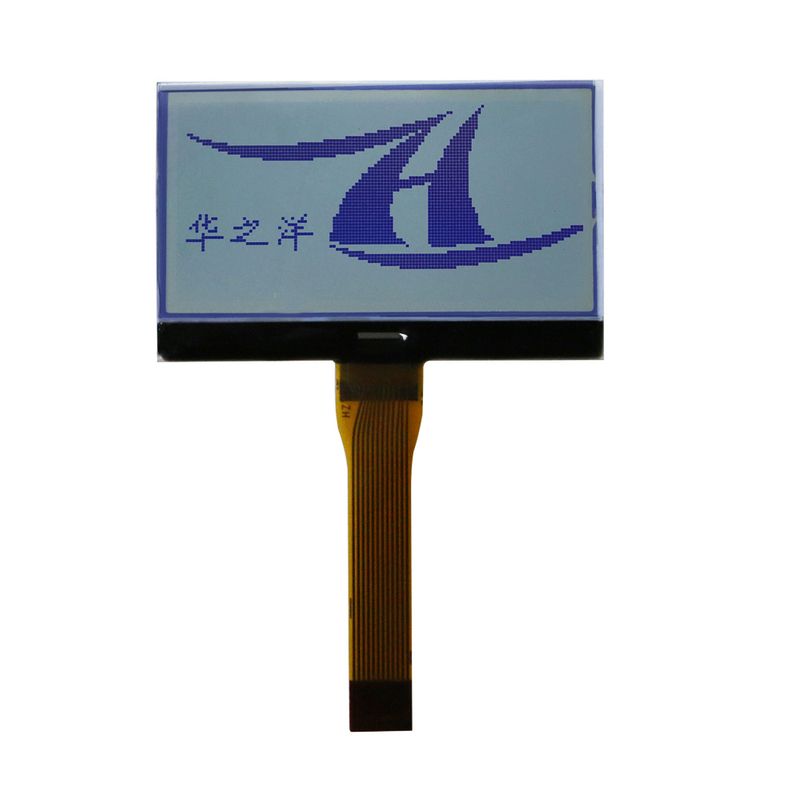

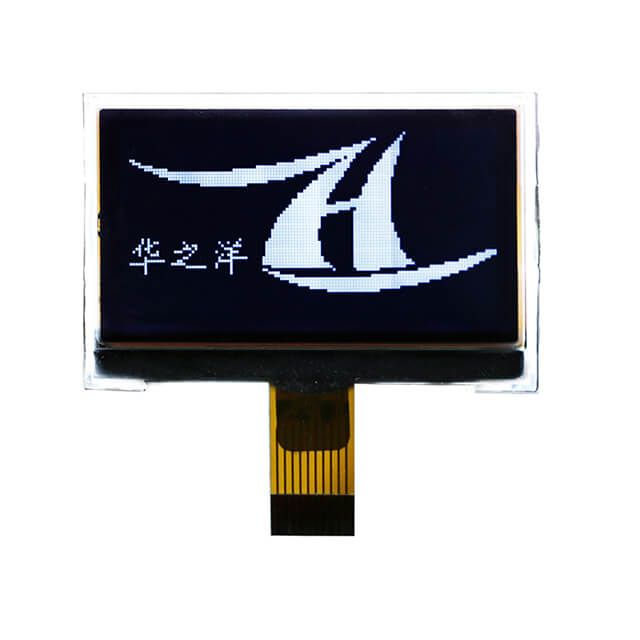

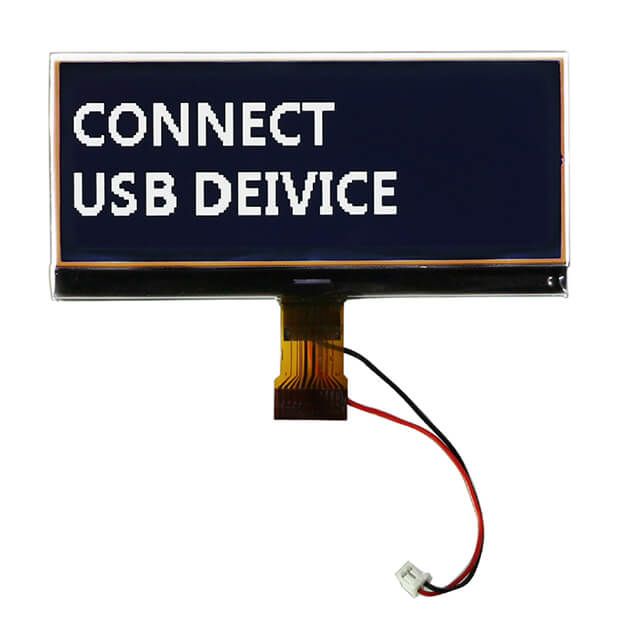

Chip-on-glass (COG) modules put the driver on the glass for the thinnest build; chip-on-board (COB) keeps it on a PCB for ruggedness and easy mounting. The 128×64 format is the family's volume centre, with 192×64, 240×128 and 240×160 above it. The differences are covered in our COG vs COB guide.
Monochrome character

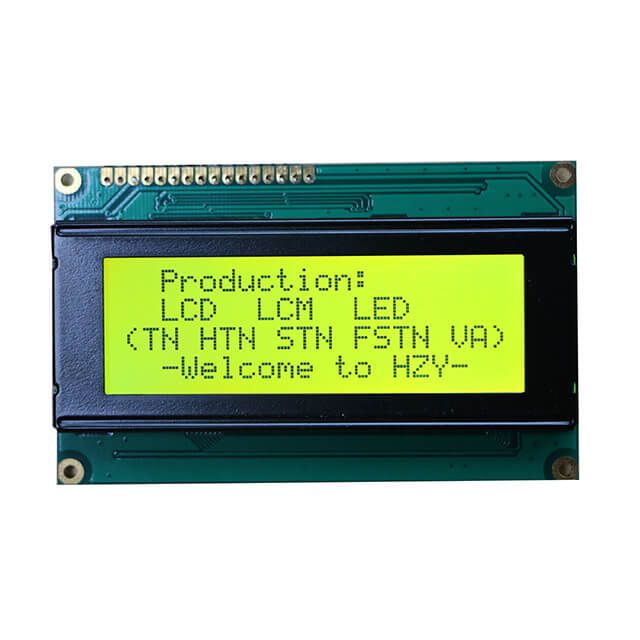

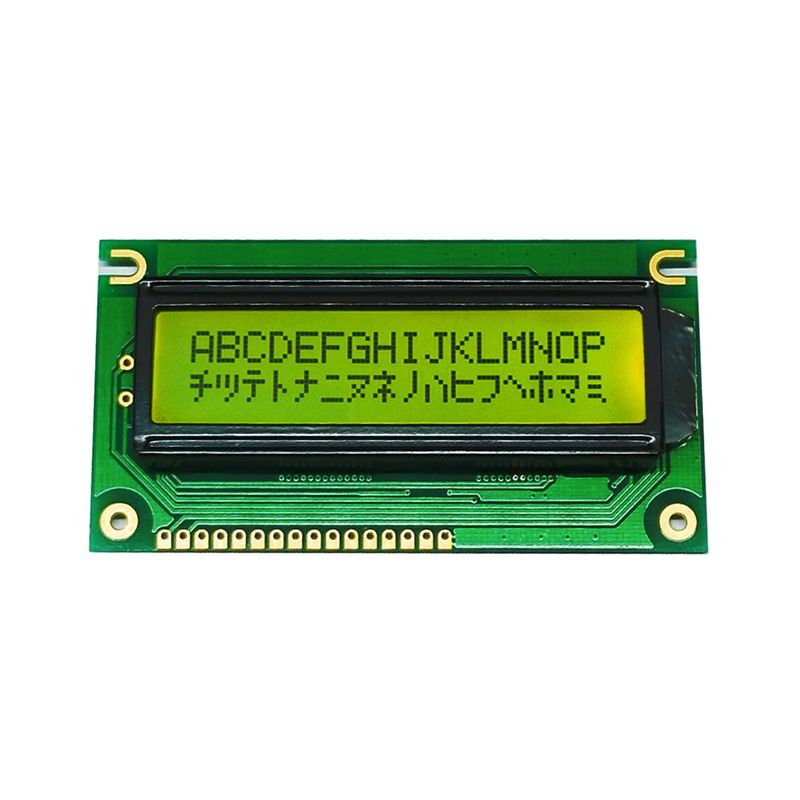

Character modules render fixed character grids — 16×2 (the classic 1602) through 40×2 — with ST7066U-class controllers your firmware team already knows. They remain the lowest-risk display choice for meters and instruments with long production lives.
Segment and backlight

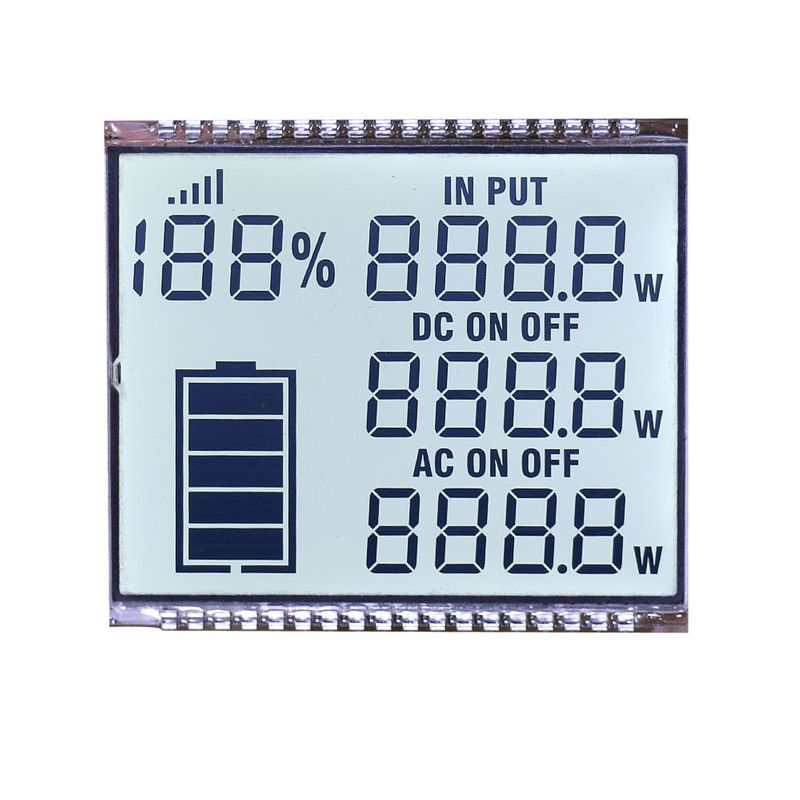

Segment LCDs are drawn around your product: digits, icons and annunciators in TN/HTN/STN/FSTN/VA glass, connected by pin, zebra strip or FPC. LED backlights are a product line of their own here — standard colours and special shapes, sized to the module, at an audited output of 2 million units per month.
Choosing a family in one minute
Need colour or touch → TFT. Need the thinnest possible graphic display → COG. Need a robust, screw-mounted graphic or character display → COB. Need only digits and icons, at the lowest unit cost, for years → segment. Every family is built and 100% inspected in the same Guangming District factory, and families can be mixed in one shipment — a common pattern is a TFT main display with a segment auxiliary display from a single custom LCD project.
Send an Inquiry
Tell us the size, resolution, interface and quantity — we reply with the matching platform model or the custom route, drawings first.
